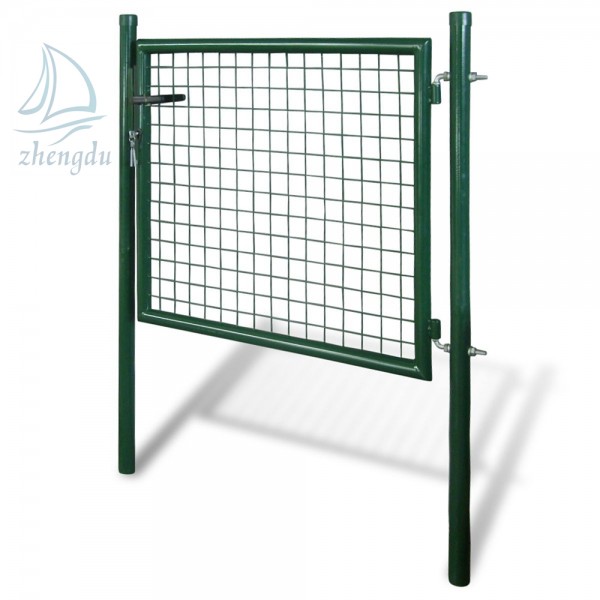

It's for small access especially for resident, it’s for private resident or other less important access. Double open gate is also used for factory or infrastructure less important access.
It’s made by iron tube (round or rectangle) + steel wire welded panel. After welding then plastic powder coated or hot dipped galvanized.
Finlay installed with the lock, hinge and handle
TECHNICAL DATA1.6
- Tube zinc coating: 40gr/m2, wire zinc coating around 60 gr/m2
- Epoxy coating（double layer can be required）
|
Type |
Tube |
Frame |
Wire of panel |
Mesh of panel |
Height |
|
|
mm |
mm |
mm |
m |
m |
|
G1601 |
60*1.5 |
40*40*1.5 |
4 |
50*50 |
1-1.25-1.5-1.75-2.00 |
|
G1602 |
60*60*1.5 |
40*40*1.5 |
4 |
50*50 |
|
|
G1603 |
48*1.5 |
40*1.5 |
4 |
100*50 |
|
|
G1604 |
48*1.5 |
32*1.5 |
4 |
200*50 |
1-1.2-1.5 |
|
G1605 |
48*1.5 |
30*1.2 |
3 |
60*60 |
1-1.2 |
|
Type |
Tube |
Frame |
Barre |
Height |
|
|
mm |
mm |
mm |
m |
|
G1606 |
60*40*1.5 |
40*40*1.5 |
20*20*1.5 |
1-1.25-1.5-1.75 |
|
G1607 |
80*40*1.5 |
20*20*1.5 |
2.00 |
|
|
G1608 |
60*60*1.5 |
4000 |
20*20*1.5 |
1.25-1.5 |
|
G1609 |
80*60*1.5 |
20*20*1.5 |
1.75-2.00 |
