Wire Panel
TECHNICAL DATA
- Zinc Coating: 60-80gr/m2
- Tensile Strength: 450-550N/mm
- Epoxy plasticized after welding (Double layers is possible, first layer is primary)
- Diameter of wire can be variably defined by client (normally from 3.0mm to 6.0mm before welding and coating)
COLOR
White，Green，Black

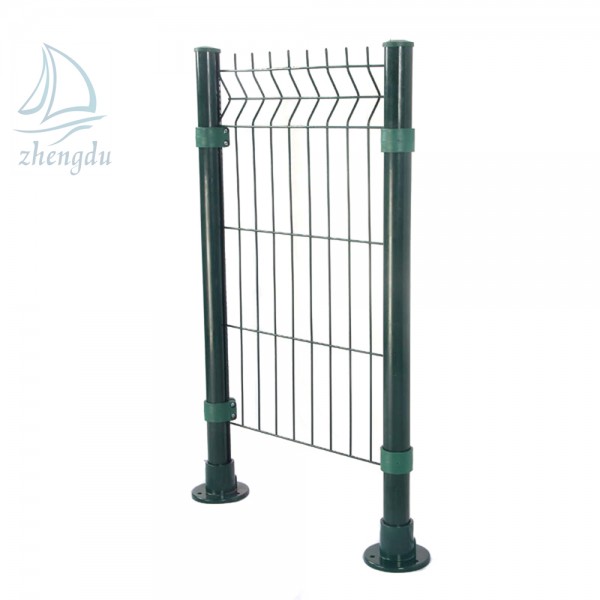

The panel fence are produced by superior thick galvanized steel wire, zinc phosphate and powder coated after welding. The wires are fully and heavily welded at every intersection to ensure a high tensile strength. In complement with a wide range of post options, they allows perfect adaptation to the land without any unsightly stair effect. They are adapted security levels and successful installation concept.
The panel fence are widely used in garden, residence, factory cloture and security Infrastructure
TECHNICAL DATA
- Zinc Coating: 60-80gr/m2
- Tensile Strength: 450-550N/mm
- Epoxy plasticized after welding (Double layers is possible, first layer is primary)
- Diameter of wire can be variably defined by client (normally from 3.0mm to 6.0mm before welding and coating)
COLOR
White，Green，Black
|
SINGLE WIRE PANEL |
|
|
|
|
|
Mesh |
Wire |
Height |
Length |
Plis |
|
mm |
mm |
m |
m |
n |
|
50*50; |
4-6 |
0.63 |
2;2.5;3 |
2 |
|
0.83 |
2 |
|||
|
1.03 |
2 |
|||
|
1.23 |
2 |
|||
|
1.53 |
3 |
|||
|
1.73 |
3 |
|||
|
1.93 |
4 |
|||
|
2.03 |
4 |
|||
|
SINGLE WIRE PANEL |
|
|
|
|
|
Mesh |
Wire |
Height |
Length |
Plis |
|
mm |
mm |
m |
m |
n |
|
50*50; |
4-6 |
0.63 |
2;2.5;3 |
2 |
|
0.83 |
2 |
|||
|
1.03 |
2 |
|||
|
1.23 |
2 |
|||
|
1.53 |
3 |
|||
|
1.73 |
3 |
|||
|
1.93 |
4 |
|||
|
2.03 |
4 |
|||
